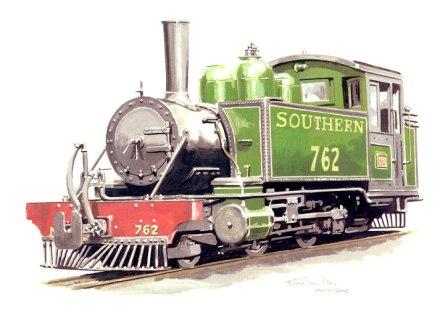

| Builder | Alan Keef & Sons, Ross-on-Wye | Baldwin Locomotive Works, USA |

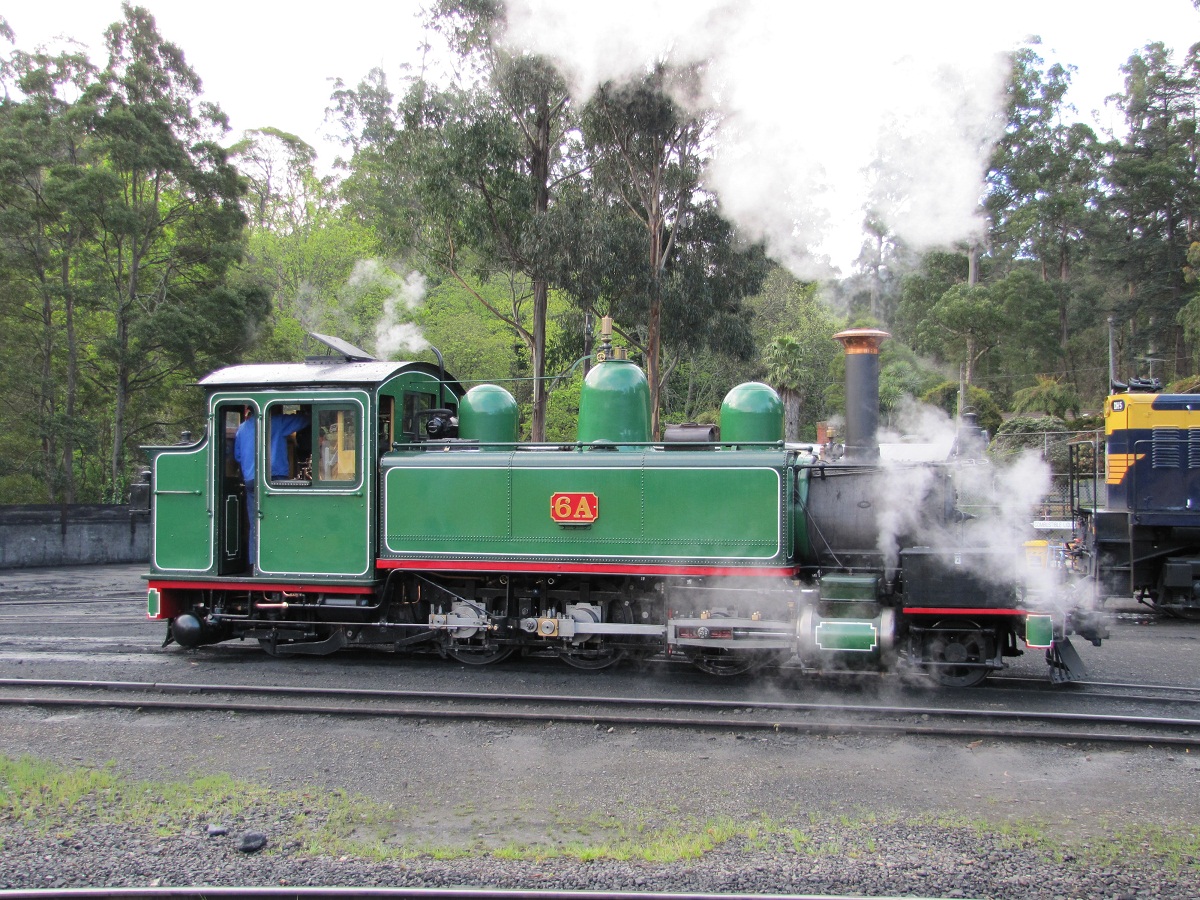

Baldwin Locomotive Works(2), VR Newport Workshops (15) |

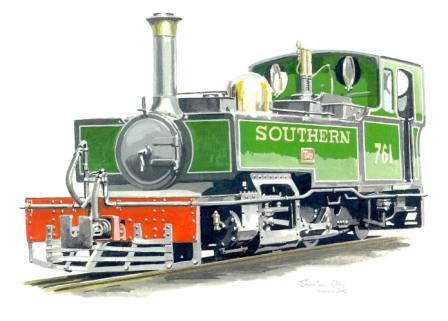

Manning Wardle, Leeds | Manning Wardle, Leeds |
| Total Production | 1 | 1 | 17 | 3 | 1 |
| Serial Number | 15965 | - - | 1361,1362,1363 | 2042 | |
| Build Date | 2017 | May 1898 | 1898 - 1915 | 1898 | 1925 |
| Configuration | 2-4-2 | 2-4-2 | 2-6-2 | 2-6-2 | 2-6-2 |
| Gauge | 1 ft 11½ in (597 mm) | 2 ft 6 in (762 mm) | 1ft 11½ in (597 mm) | 1 ft 11½ in (597 mm) | |
| Leading Wheel Diameter | 1 ft 10 in (0.559 m) | - - | 2 ft 0 in | * | |
| Driving Wheel Diameter | 2 ft 9 in (0.838 m) | 3 ft 0 in | 2 ft 9 in (0.838 m) | * | |
| Trailing Wheel Diameter | 1 ft 10 in (0.559 m) | - - | 2 ft 0 in | * | |
| Rigid Wheelbase |
5 ft 0 in (1.52 m) |
- - | 6 ft 6 in | * | |
| Overall Wheelbase | 17 ft 7 in (5.36m) | - - | 17 ft 9 in | * | |
| Max. Axle Load | 10t | 9 t 9 c 2 q | 6 t ½cwt | 6 t 4 cwt | |
| Length Over Headstocks | 23 ft 6 in (7.16 m) | 30 ft 10 in * | 22 ft 4 in | * | |
| Length Over Drawgear | 28 ft 0 in | 30 ft 10 in * | 27 ft 0 in | * | |
| Width | 7 ft 2 in (2.1 8m) | - - | 6 ft 7 in | * | |
| Height | 8 ft 11 in (2.72 m) | 10 ft 10 in | 8 ft 11 in (2.72 m) | * | |
| Locomotive Weight | 22 t 9½ cwt | 36 t | 22 t 1cwt | 23 t 7cwt | |
| Coal Capacity | 15 cwt | 30 cwt | 1 t | 1 t | |
| Water Capacity | 664 Gallons | 780 Gallons | 550 Gallons | 550 Gallons | |
| Tractive Effort | 7,418 lbf | 12,170 lbf (54.1 kN) | 7,269 lbf | * | |
| Boiler Pressure | 180 psi (1.24 MPa) | 180 psi | 160 psi | * | |
| Fire Grate Area | 7.7 sq ft (0.72 m2) | - - | 8.85 sq ft | 8.25 sq ft | |
| Heating Surface: Total | 379.2 sq ft (35.23 m2) | 524 sq ft | 383 sq ft | 380 sq ft | |
| Cylinder Diameter | 10 in (254 mm) | 13 in | 10.5 in (266 mm) | 10 in | |
| Cylinder Stroke | 16 in (406 mm) | 18 in | 16 in (406 mm) | 16 in | |
| Valve Gear | Stephenson | - - | Joy | Joy |
