762 LYN, Woody Bay, October 2017

The 762 Club - Lyn Gallery Six: Work in Progress

With the introduction of the regular LYNformation updates on this website, it became possible to chart the development as the project continued with detailed notes, as well as images of the components and assemblies as they arrived, so this gallery was no longer updated.

Click on the LYNformation button above to read "The Baldwin's Progress"

Click on each image, to open a larger version in a new window (or tab, depending on browser)

Photo: Photographer

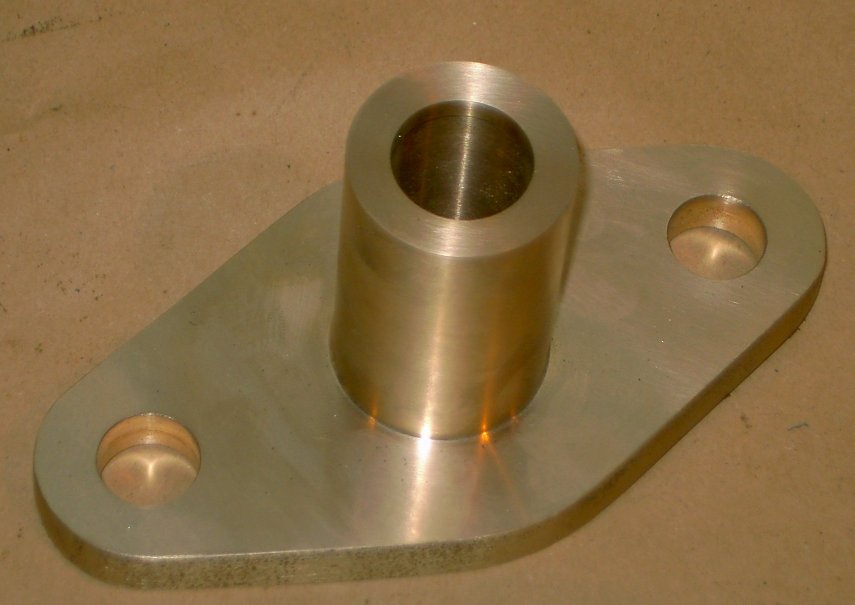

As you will see from the recent Newsletter (No. 6). many tasks, large and small, are being carried out to produce some of the thousands of components required to complete Lyn. At Alan Keef's on 25th February, these photos were taken showing some of the smaller components - this is the regulator gland:
Photo: Alan Keef
Photo: Photographer

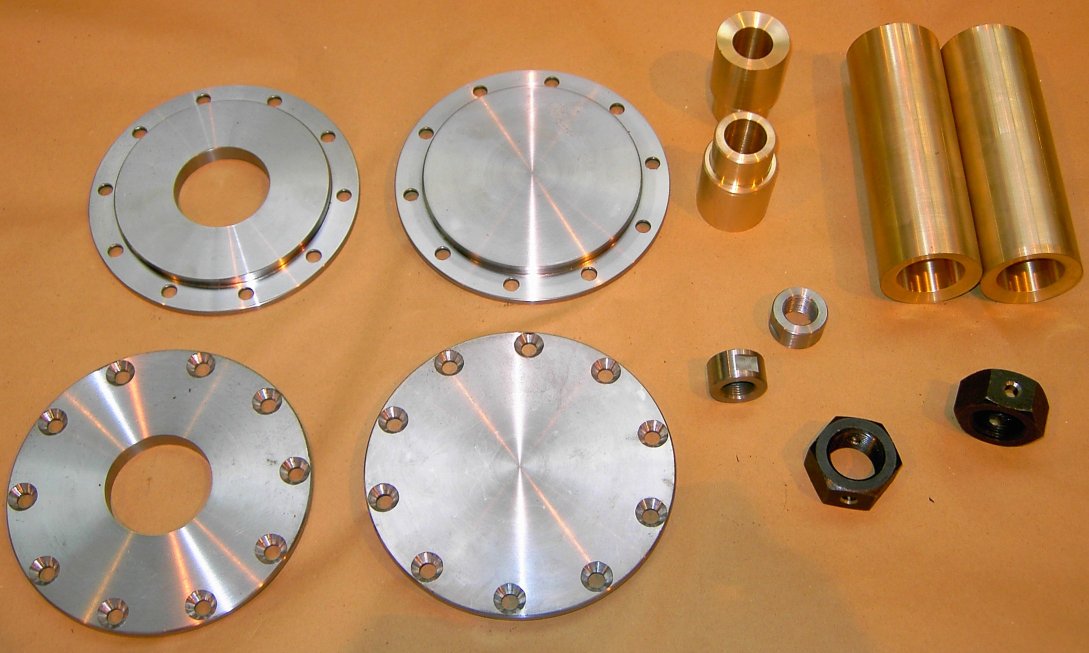

Finished cylinder end caps and other components


Photo: Alan Keef
Photo: Photographer

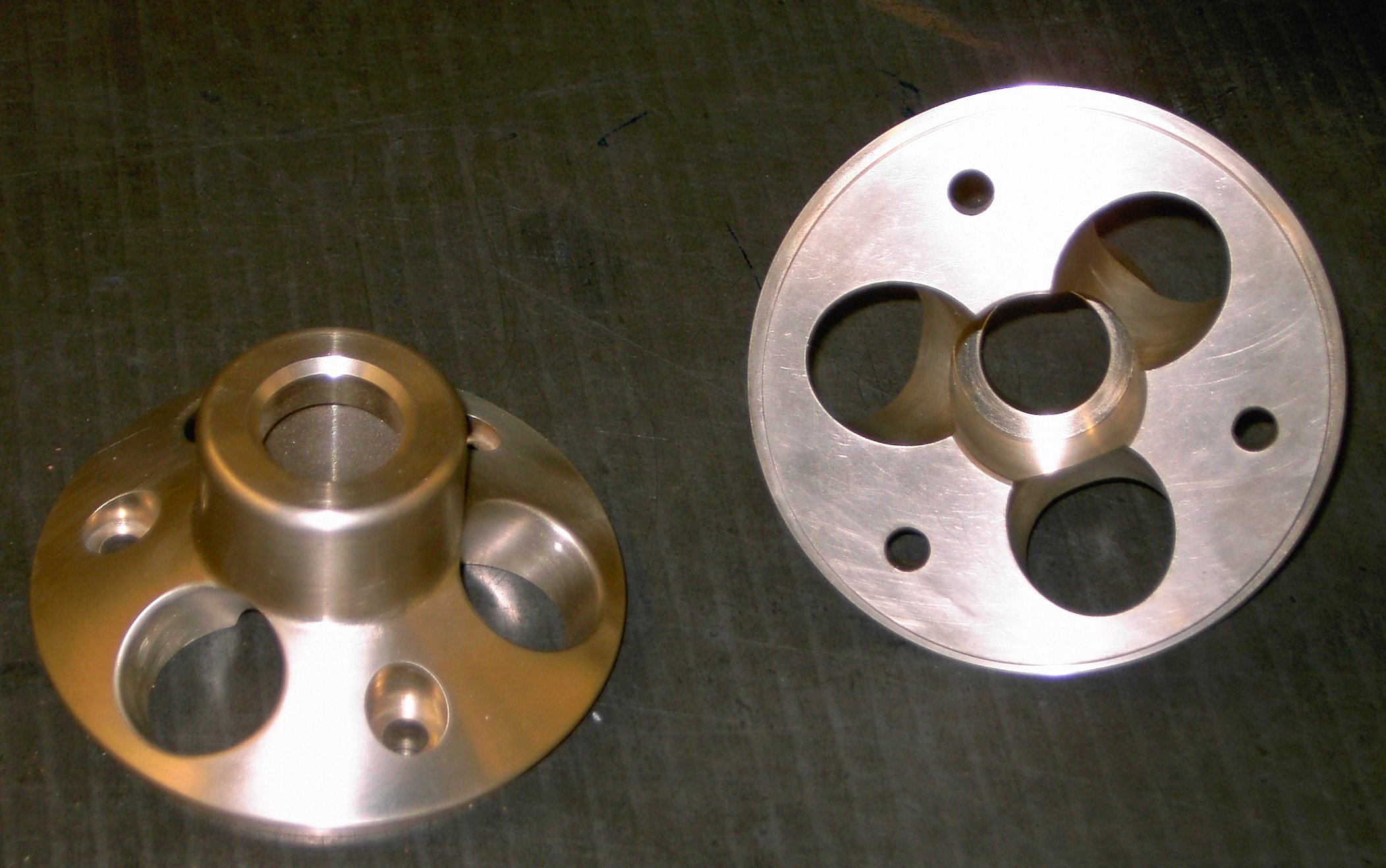

The finished valve end caps


Photo: Alan Keef
Photo: Photographer

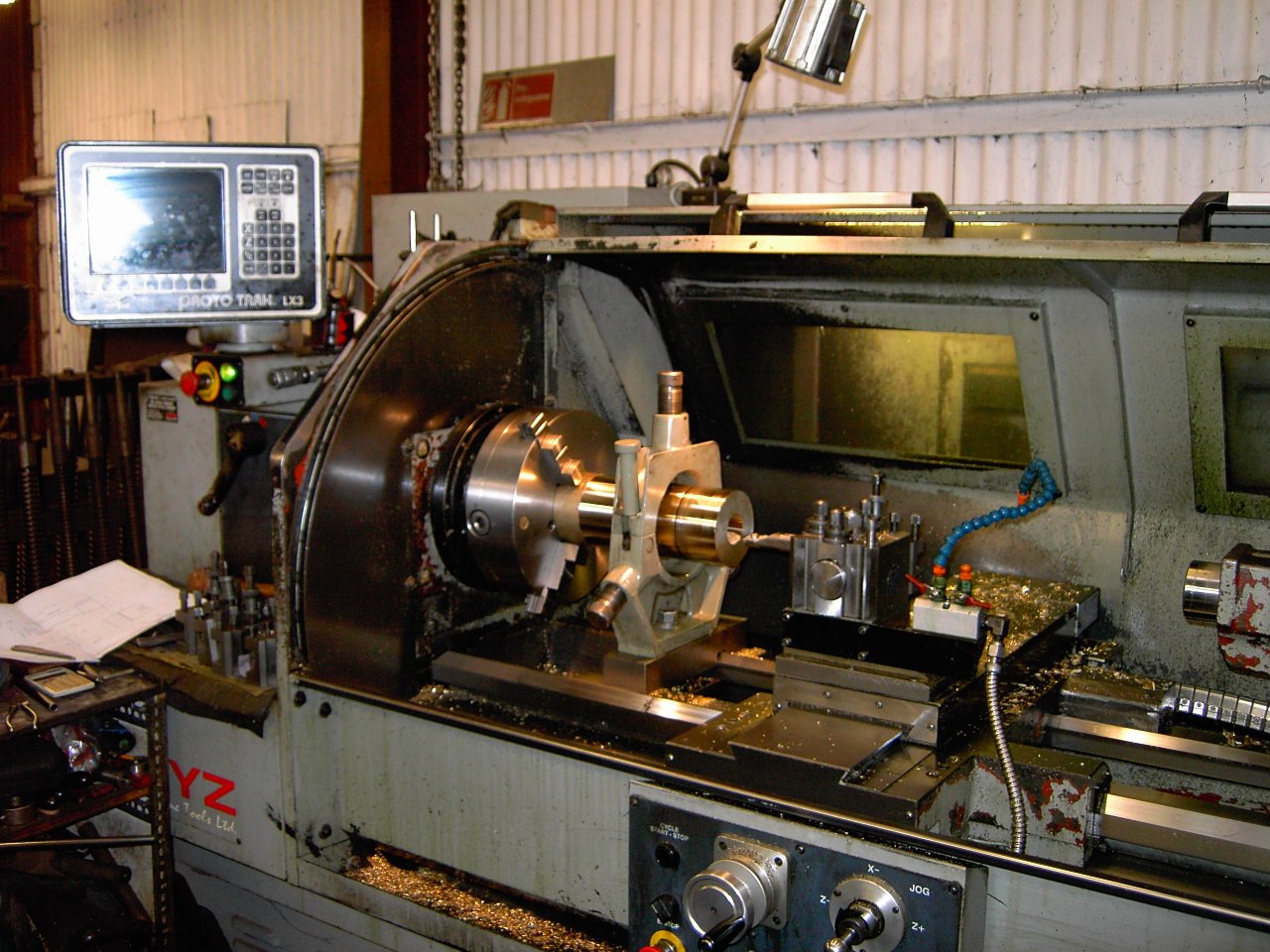

Machining the valve body

Photo: Alan Keef
Photo: ?

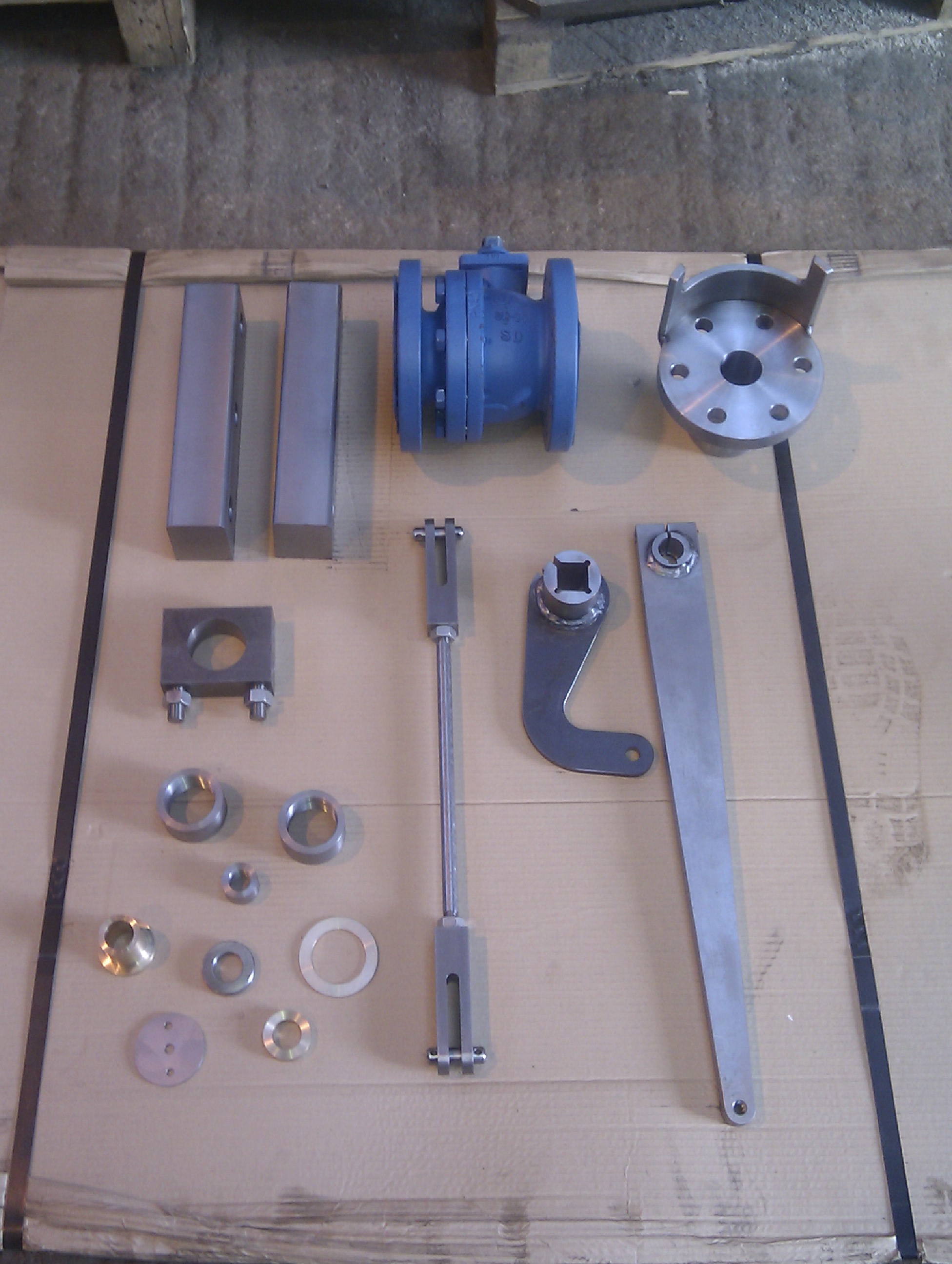

Alan Keef Engineering, 30 August 2012

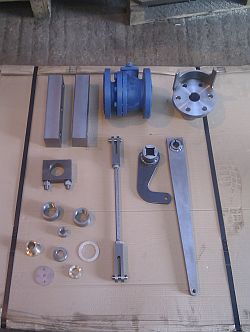

Alan Keef Engineering has recently completed work on these components for Lyn's internal regulator, including the regulator quadrant, main steam valve, linkage and bearings. These items have been despatched to Bennett Boilers to be fitted to the boiler.
Photo:
Photo: Ian Gaylor

Bennett Boilers, 5 July 2012 1/5

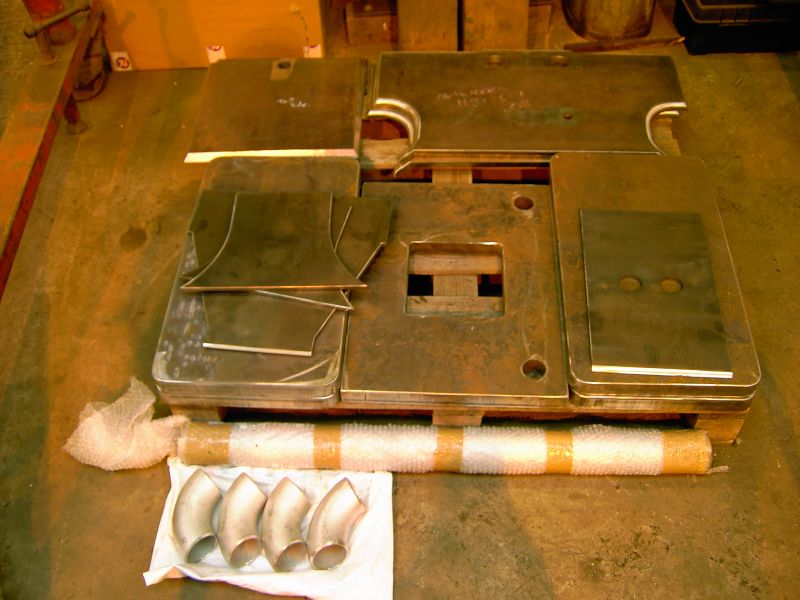

Five new photos showing first of all, progress with the firebox, then the collected parts to be assembled into the Saddle.

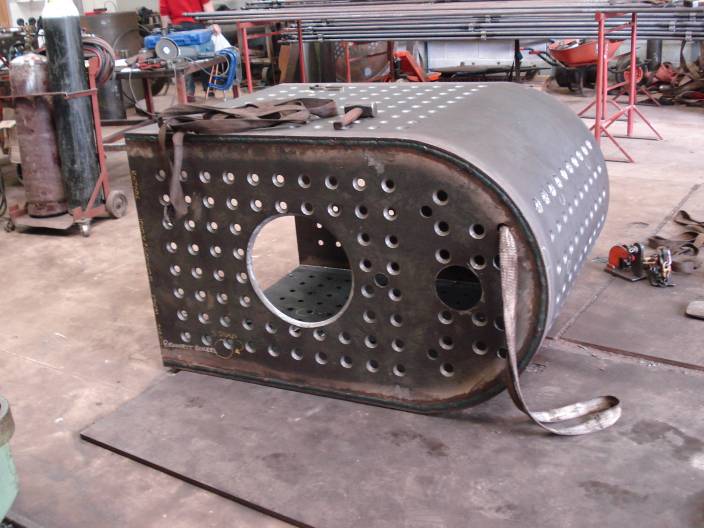

Firebox outer wrapper
Photo: Ian Gaylor

Photo: Ian Gaylor

Bennett Boilers, 5 July 2012 2/5

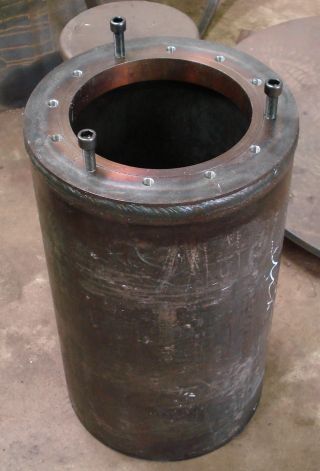

Boiler steam dome
Photo: Ian Gaylor
Photo: Ian Gaylor

Bennett Boilers, 5 July 2012 3/5

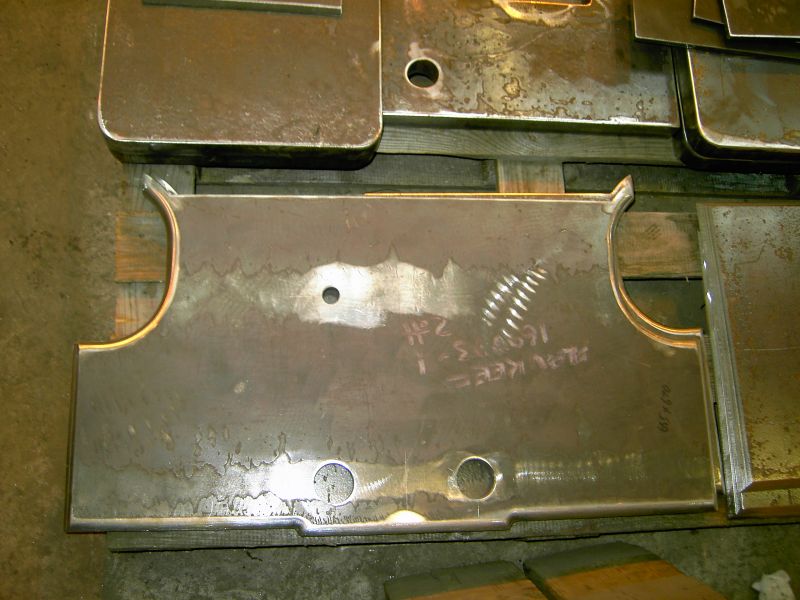

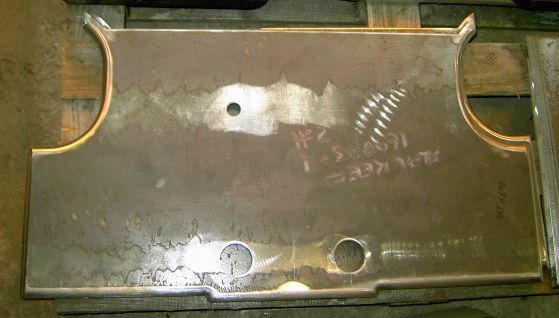

Saddle end plates
Photo: Phil Kent
Photo: Phil Kent

Bennett Boilers, 5 July 2012 4/5

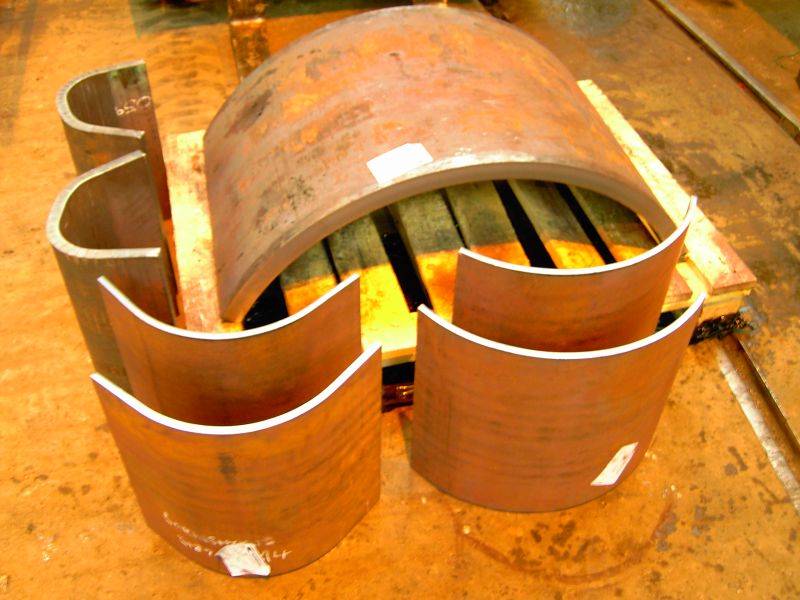

Saddle formed plates
Photo: Phil Kent
Photo: Phil Kent

Bennett Boilers, 5 July 2012 5/5

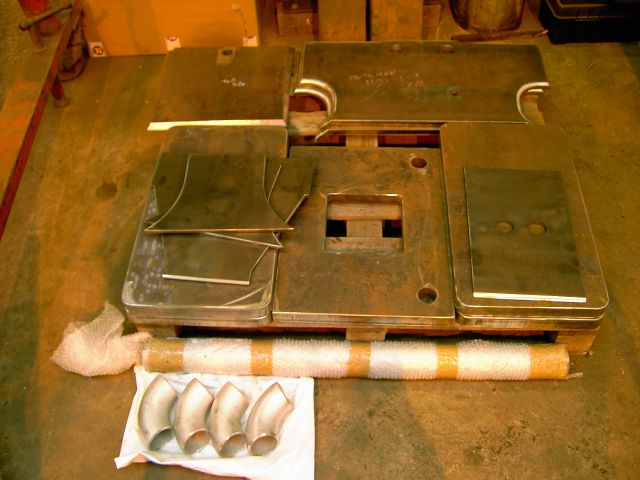

Saddle platework ready for welding
Photo: Phil Kent
Photo: Jon Pain

Bennett Boilers, 10 May 2012 1/5

Five photographs taken on the 10th May 2012, by 762 Club Finance Director Jon Pain, at Bennett Boilers' works.

Solid progress is being made on the construction of the boiler. The principle boiler components have now been purchased and are on site, these include; boiler barrel, outer firebox wrapper and smokebox.

Work is currently focussed on the fabrication of the firebox, and we look forward to providing further updates over the coming weeks, along with views of the work in Progress at Alan Keef.

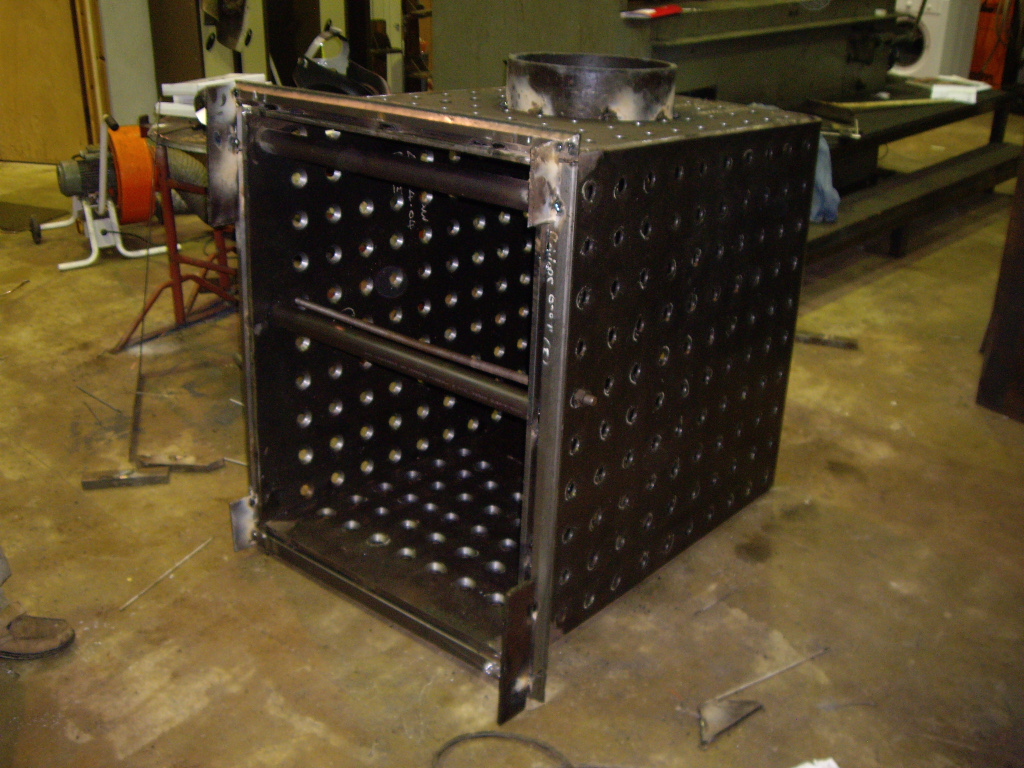

This view, The firebox inner.
Photo: Jon Pain

Photo: Jon Pain

Bennett Boilers, 10 May 2012 2/5

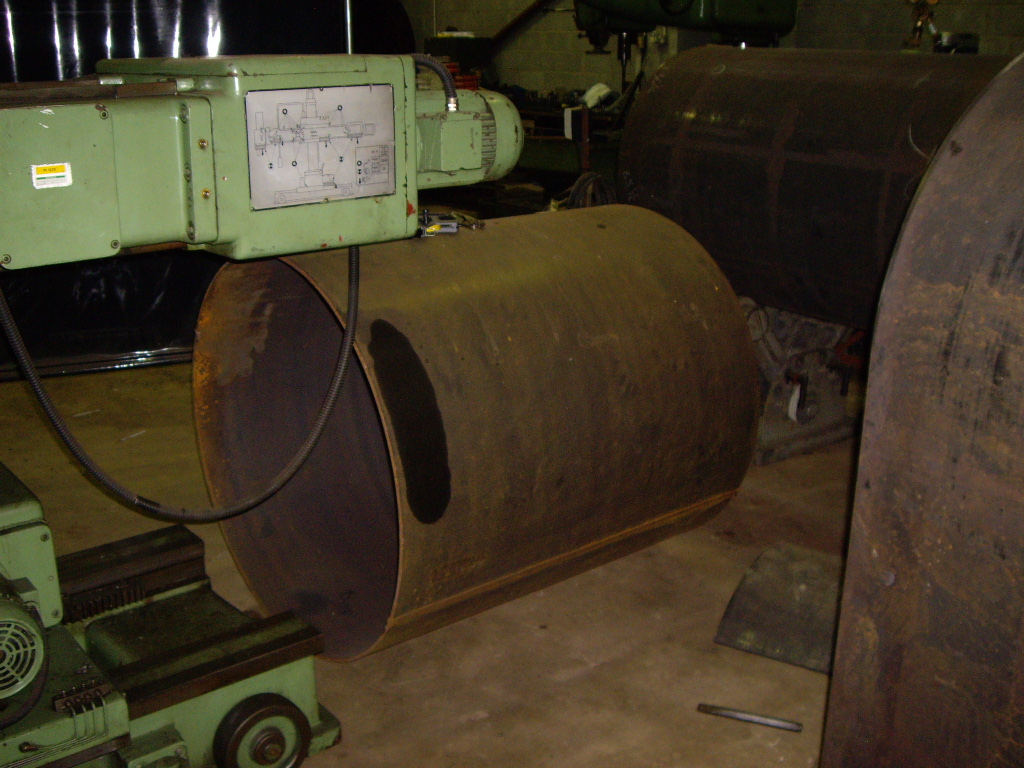

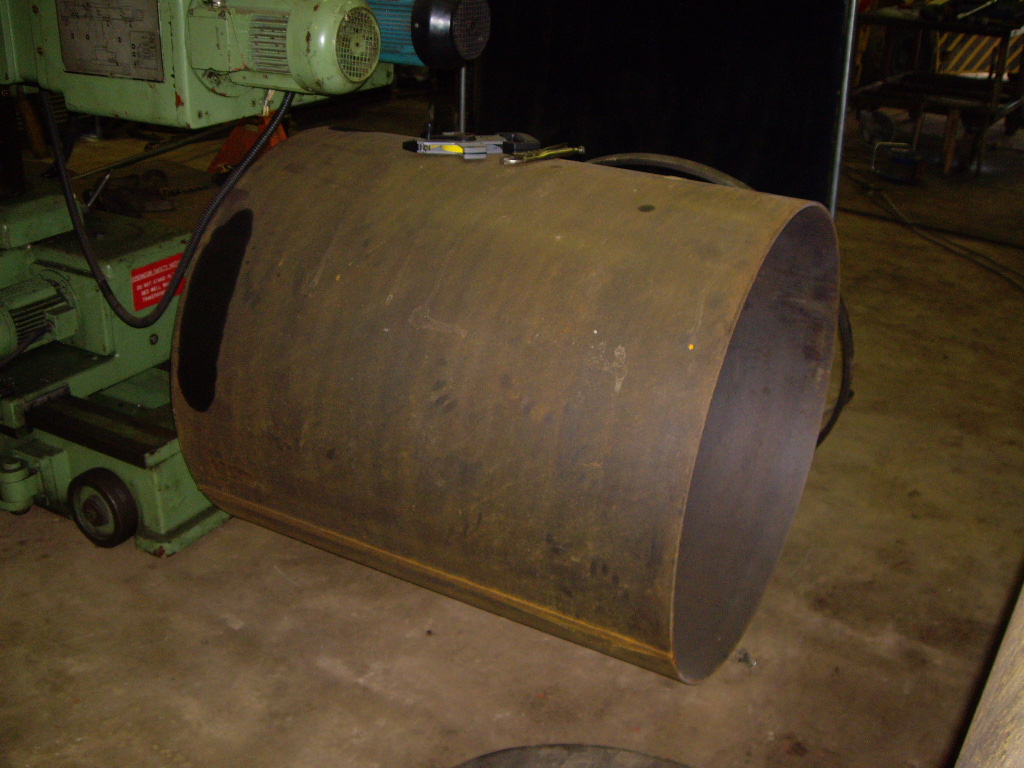

The Smokebox tube
Photo: Jon Pain
Photo: Jon Pain

Bennett Boilers, 10 May 2012 3/5

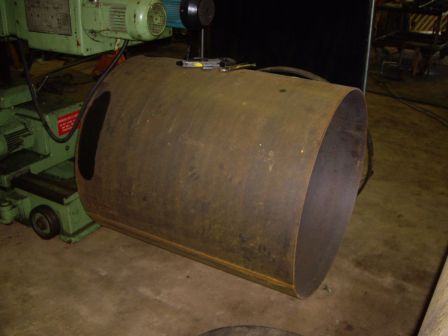

Another view of the smokebox
Photo: Jon Pain
Photo: Jon Pain

Bennett Boilers, 10 May 2012 4/5

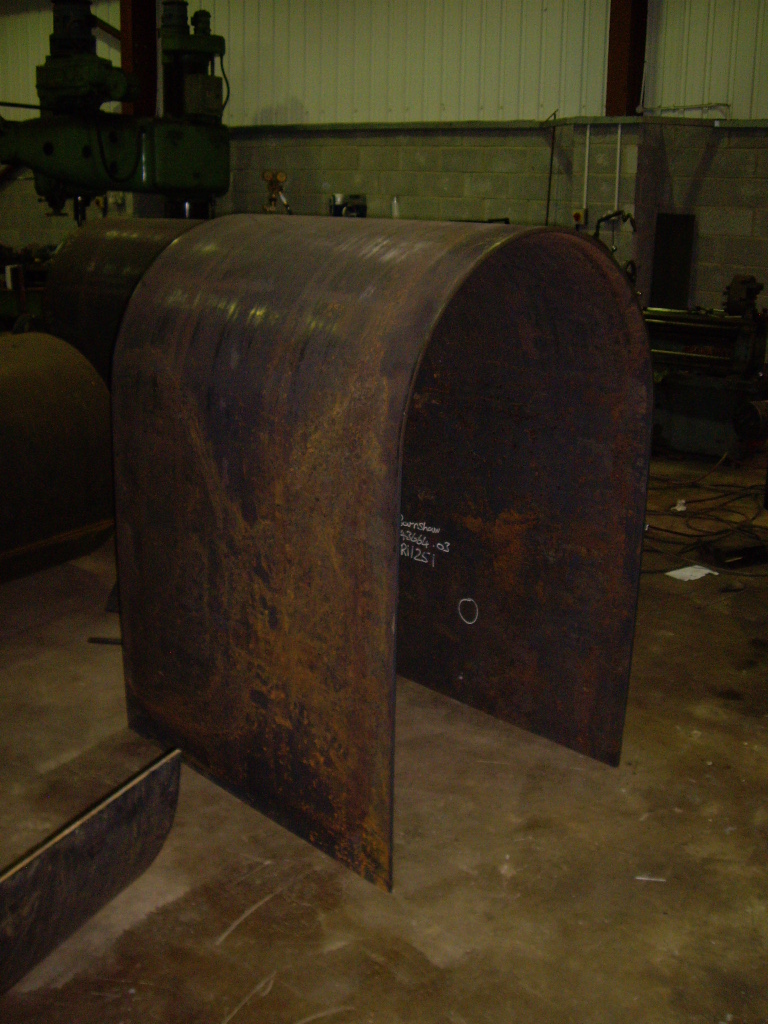

Firebox outer wrapper
Photo: Jon Pain
Photo: Jon Pain

Bennett Boilers, 10 May 2012 5/5

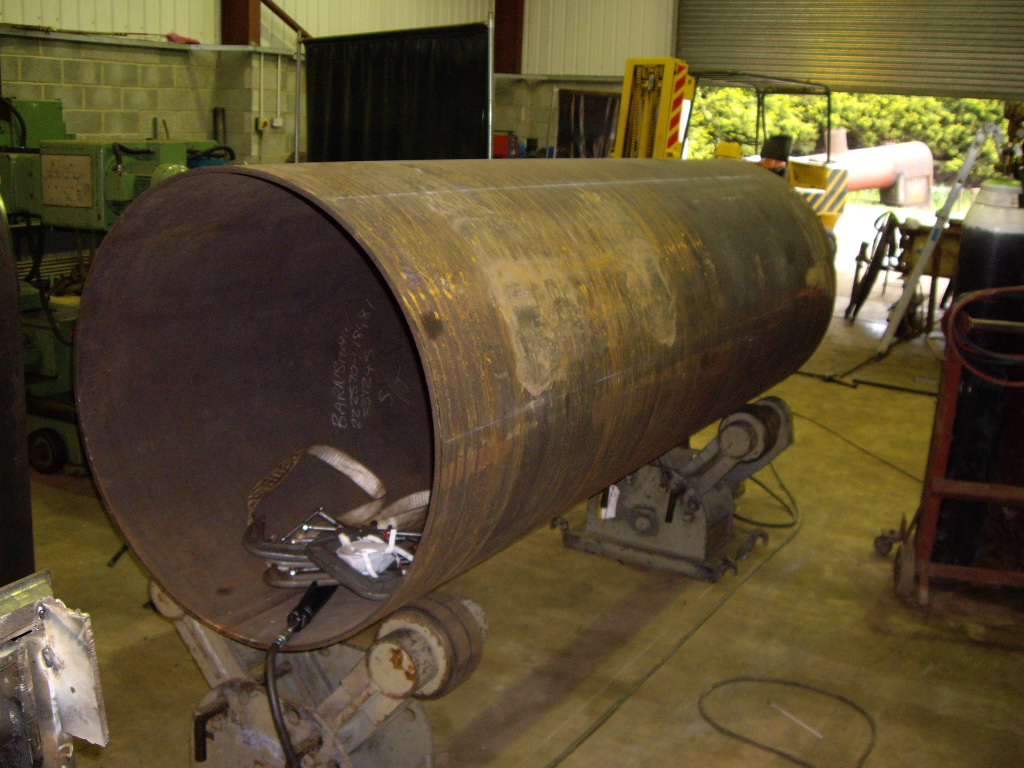

Boiler barrel
Photo: Jon Pain
Photo: Trefoil Steel Company

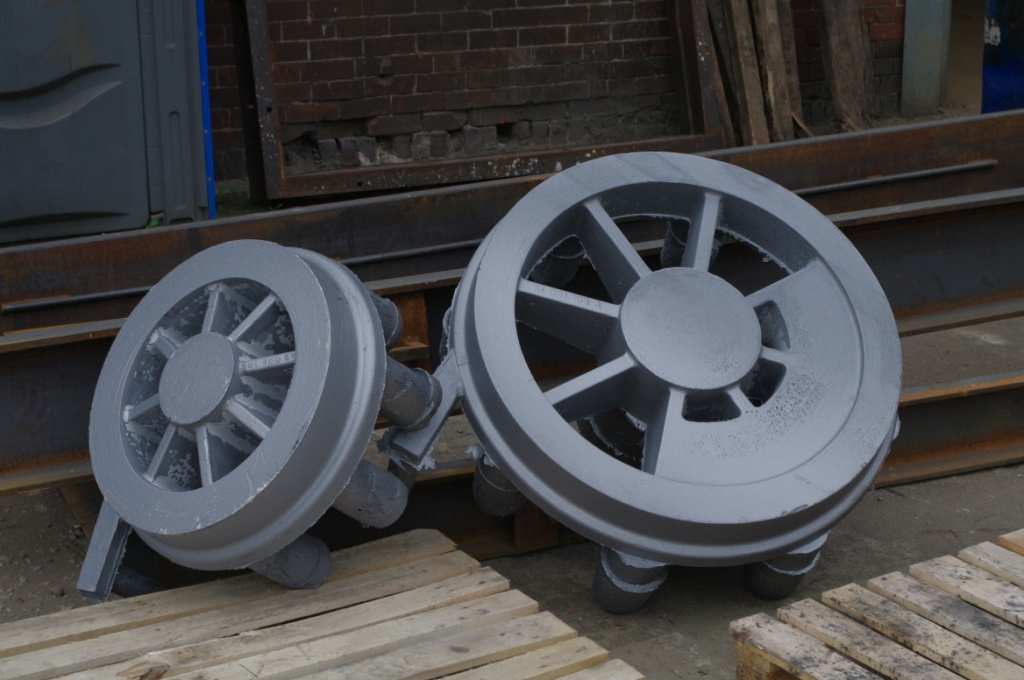

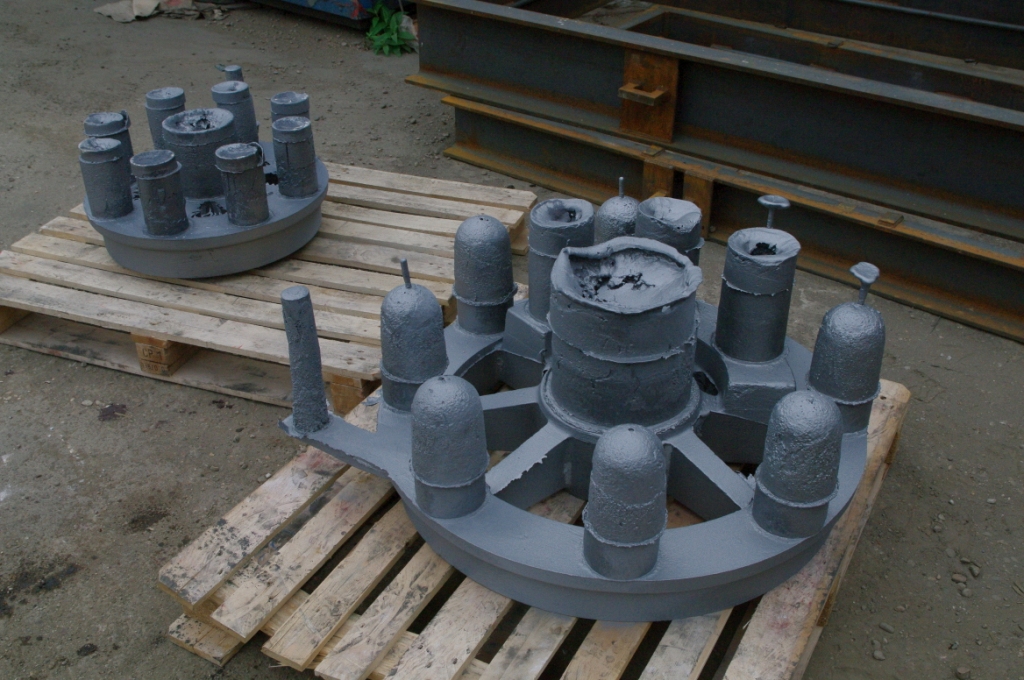

Casting Wheels - "Little and Large"

In April 2011, Lyn's first wheels were cast, at the Trefoil Steel Company in Tinsley, Sheffield.
Photo: Trefoil Steel Company
Photo: Trefoil Steel Company

Casting Wheels - ready for machining

These wheels were ordered to test the patterns. The remainder will be ordered shortly, and will include machining.

It will be noticed that the tyre is part of the casting and the wheel profile will be machined straight onto the casting.

In due course after wear and re-profiling, it is intended that steel tyres can be fitted for further service. This is in line with modern day methods, but a novelty in the world of steam preservation.
Photo: Trefoil Steel Company

Photo: Trefoil Steel Company

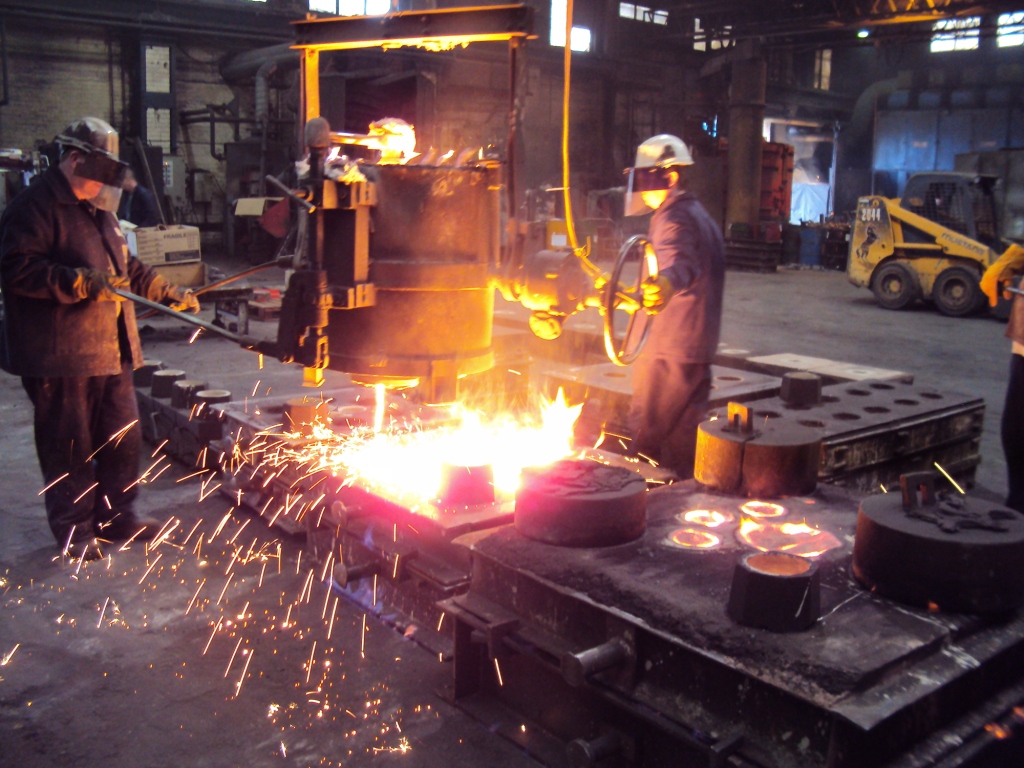

Casting Wheels - Sparks are flying

The design of the driving wheels is complete with the exception of final detailing of the balance weights which will be finalised once the motion design work has been dealt with. The patterns include sufficient material for the balancing to be completed by removing surplus material from the wheels.
Photo: Trefoil Steel Company
Photo: Peter Miles

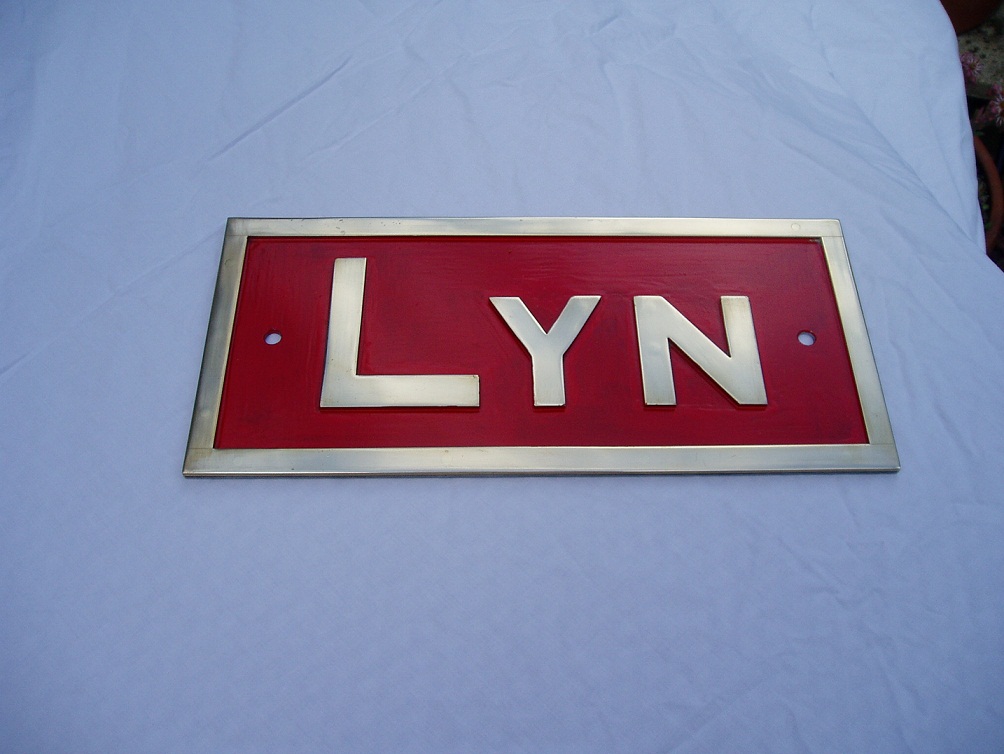

Lyn's Nameplates

When Baldwin Locomotive works built the 2-4-2 for the Lynton & Barnstaple it was finished in Holly Green with nameplate painted on at the works. These certainly have the look of 19th century America about them. Clearly the Pilton staff thought likewise and before long the fitter had made up two new plates with steel backing and brass letters 1/8” thick sawn out of sheet and riveted on.

Those plates stayed on ‘Lyn’ until the fateful day in 1935 when she was unceremoniously cut up for scrap in the same sheds at Pilton where she had been lovingly (?) assembled 37 years before. One plate went into private hands and the other into the York Railway museum along with the nameplates from her fellow L&B sisters.

When we began the planning for the replacement ‘Lyn’ I was able to visit the NRM at York and given permission to climb up the wall and take dimensions and photographs of the nameplate. Whilst doing that, the brass rivets became very clear as they are a slightly different shade of brass (softer material for rivets) The corners of the frame were soft soldered with butt joints.

Some drawings were prepared, material obtained and a few new hacksaw blades. A while later and my riveting skills were brushed up and then the polishing began. The result is a pair of new nameplates of the correct size and construction which will no doubt receive plenty of Brasso over the coming years!

As a final point, the cabside photos of Lyn appear to show nameplates much thicker than the ¼” of the metalwork. The reason is that a backing piece of wood has been used, sandwiched between nameplate and steel cabside; I wonder why?
Photo: Peter Miles

Photo: TBA

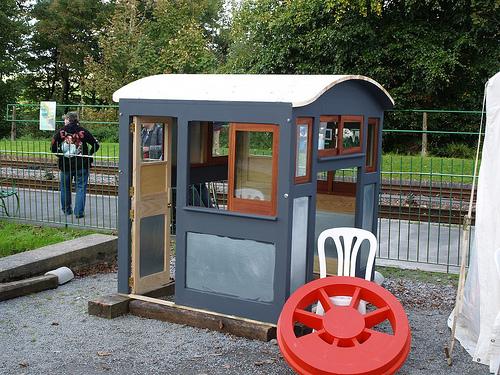

Lyn at the L&B Autumn Gala 2010 (1)

The cab (in primer with steel infill panels and toughened safety glazing) on display adjacent to the 762 Club sales stand with one of the driving wheel patterns in the foreground.
Photo: TBA
Photo: Peter Miles

Lyn at the L&B Autumn Gala 2010 (1)

Jon Pain and Peter Miles going for a “cab ride” in the newly completed cab with the name plate and number plate for the finished locomotive. Note ‘Lyd’ in the background – imagine in two years time this cab could be assembled to the rest of the engine and ‘Lyn’ could be in the up platform.
Photo: TBA
Photo: TBA

Lyn at AWH, 2010 (1)

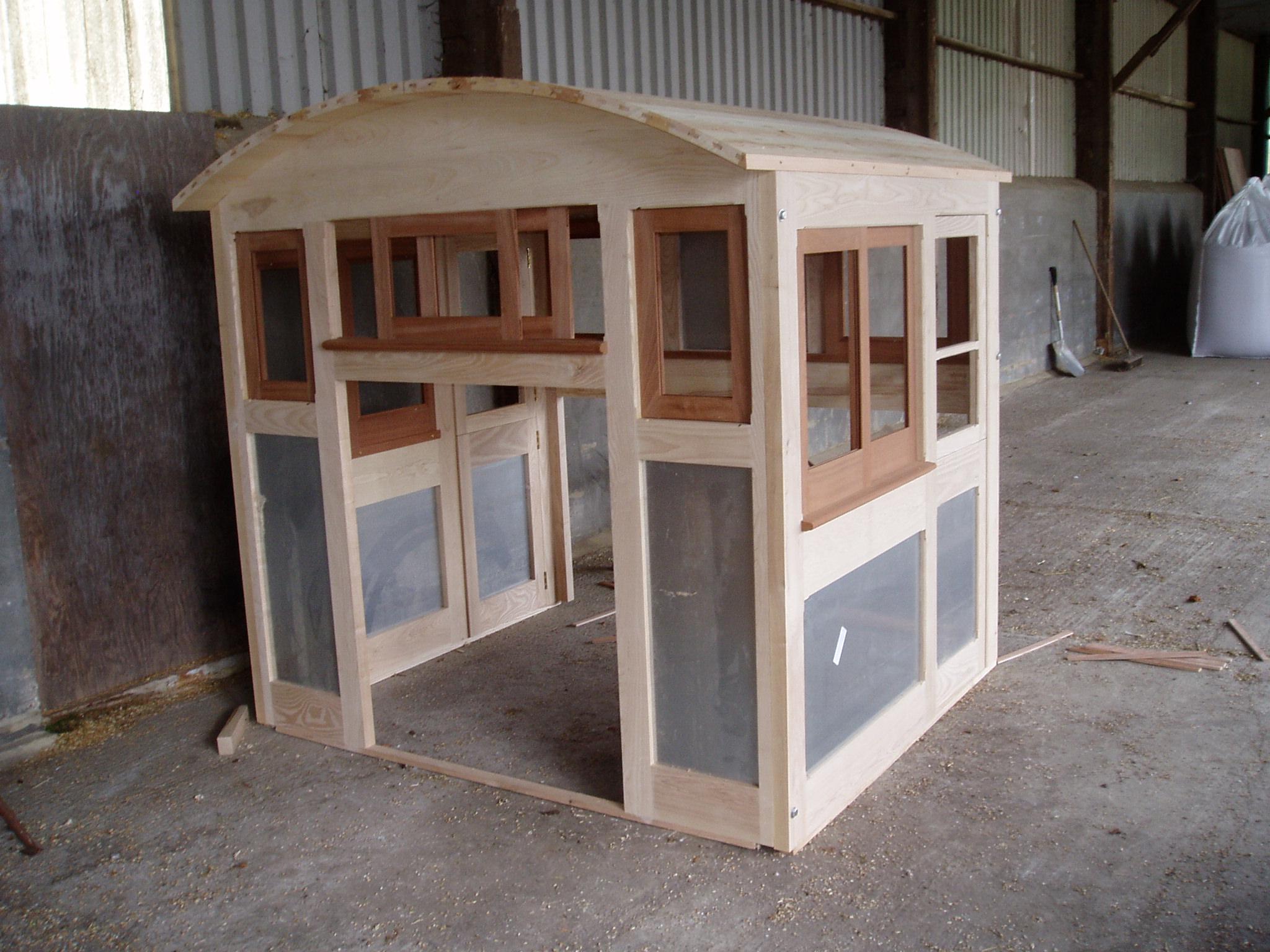

The completed wooden cab manufactured by AWH Joinery Ltd in Luton. The cab has been constructed to the designs & details of the original, in American Ash with hardwood windows and steel infill panels. Drawings were prepared using the original general arrangement drawings plus information culled from photographs taken at various times in the life of the original loco. Thanks also to Steve Philips for construction details and advice.

The metal roof covering will not be added until the cab is assembled on the locomotive, as will the sliding roof vent. Note the tongued & grooved timber roof boarding in place.
Photo: Peter Miles

Photo: TBA

Lyn at AWH, 2010 (2)

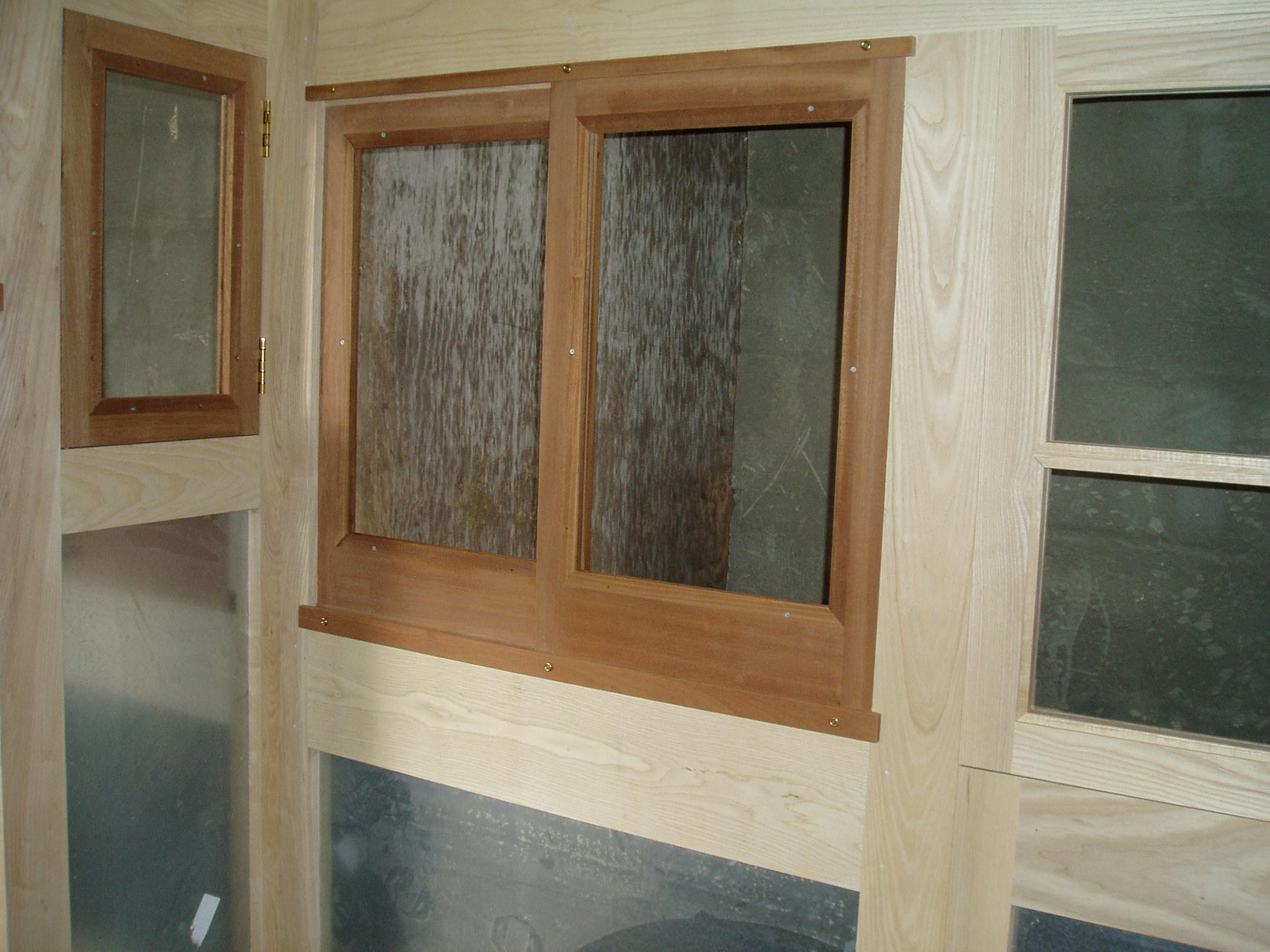

Detail of the sliding windows with toughened safety glass fitted to the cab.

The hardwood windows are finished in Danish Oil - which will not crack, split or peel as varnish does. The majority of the cab will be finished in black and the inset steel sections green. The green will be a specialist paint in Maunsell Green by TR Williamson (as used on Birch Grove at the Bluebell Railway, lovely!). Inside the cab, the roof & walls are in dark stone and below waist level, black.

Other details will be added to the cab including ironmongery, bolts, driver & fireman’s seats, handrails, armrests, so that it will be as far as possible ready to lift onto Lyn when the rest is ready, and bolted down with the angle bracket fixtures.
Photo: Peter Miles

Photo: Peter Miles

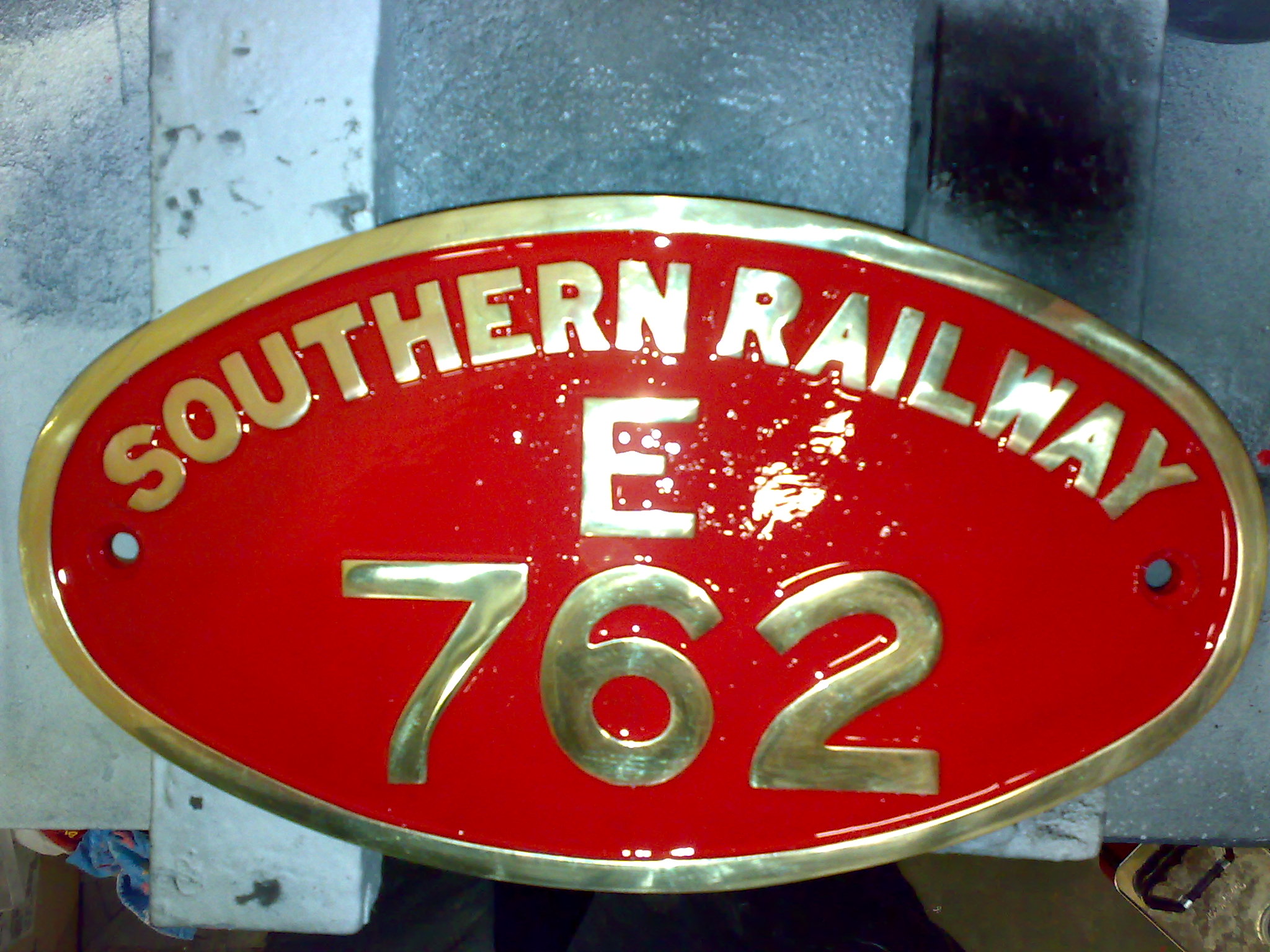

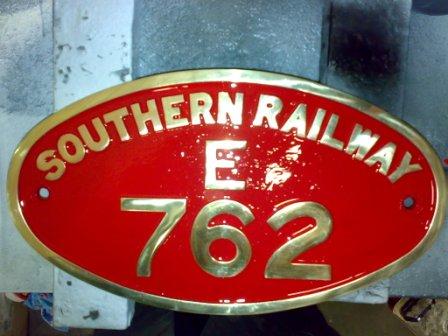

Numberplate

Lyn's numberplate, produced by Procast of Cleckheaton, West Yorkshire, for use on the new locomotive.
Photo: Procast
Photo: Tony Nicholson

Wheels on Rails

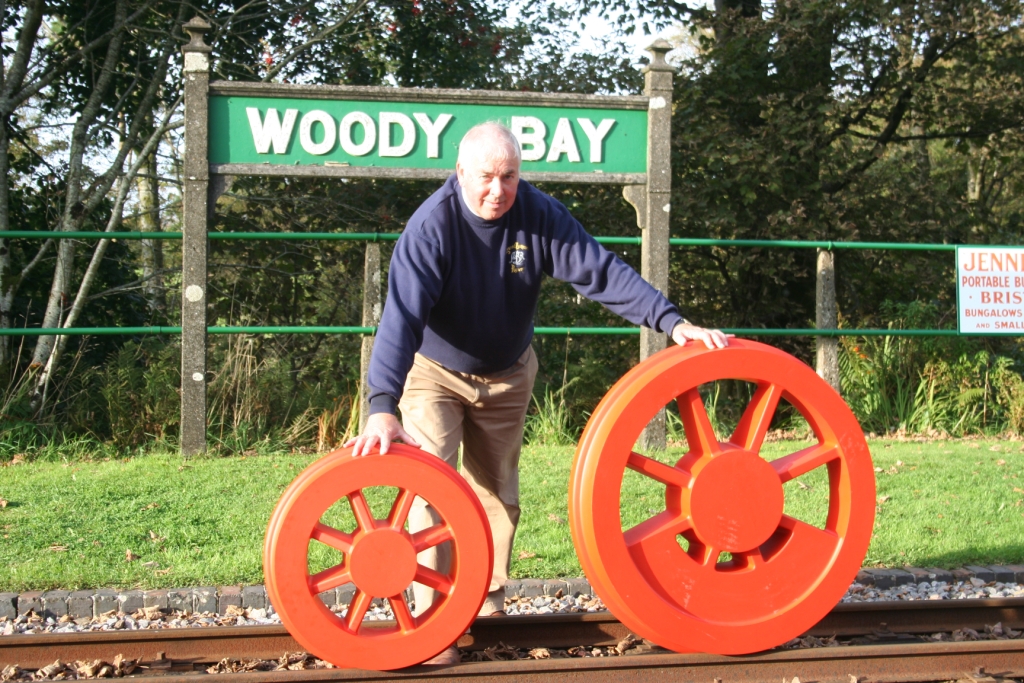

The wheel patterns are shown posing with Peter Miles (762 Club's Project Manager) on the rails at Woody Bay, 27 September 2009.
Photo: Tony Nicholson
Photo: Tony Nicholson

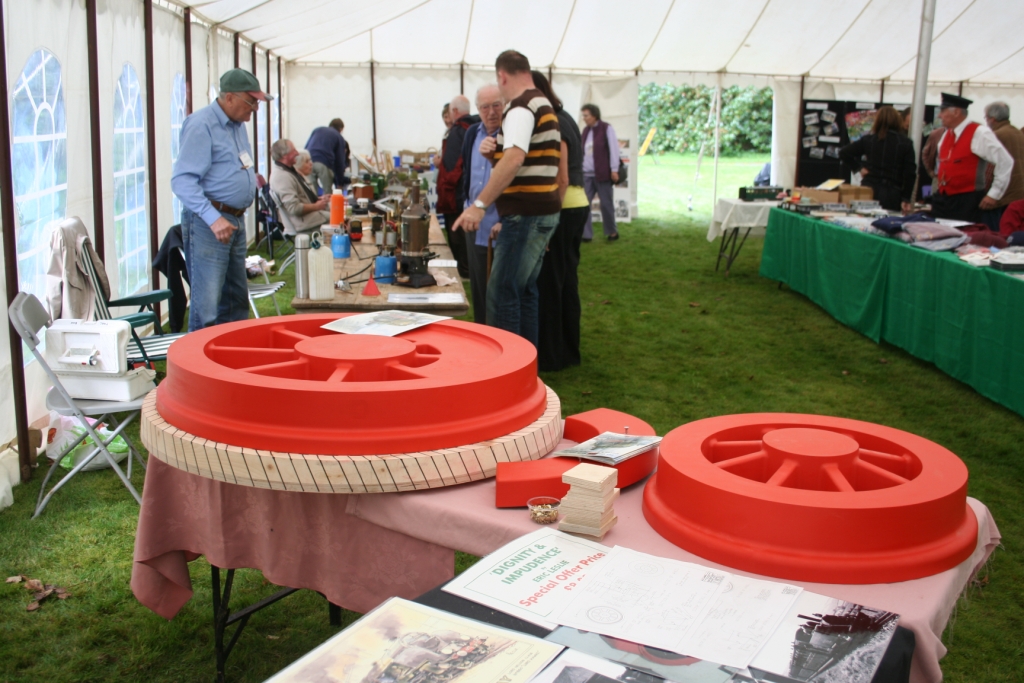

Wheel Patterns on display at Woody Bay

Construction of Lyn is underway, and evidence of this was seen at the Lynton & Barnstaple Railway's Autumn Gala over the weekend of 26/27 September, 2009 - the completed patterns for both the driving and truck wheels are on display in the marquee.
Photo: Tony Nicholson
